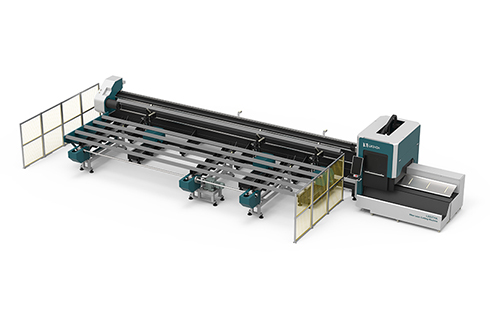

Machine ModelLX83THA
Power of Generator1500-6000W
ChuckFront and rear dual pneumatic chucks
Positioning Accuracy0.03mm
Maximum Speed70m/min
Chuck speed80r/min
Applicable pipe specifications Round tube   20mm-218mm


Square tube   20mm-155mm

Rectangular tube   diagonal<218mm

Tube length6050mm
Silo load-bearing3T
Single maximum weight200kg
Voltage380V±10%50HZ


Semi-enclosed design

  • A. Semi-enclosed design, equipped with automatic lifting doors, which is convenient and at the same time guarantees the safety of workers

  • B. Heavy-duty welded bed, it can meet the high-speed operation of the machine without shaking

  • C. The front end of the machine is surrounded by design to improve the dust removal effect

  • [LX83THA] New design cnc laser pipe cutting machine LX83THA Automatic loading and unloading laser tube cutter for sale


Advantage

  • A  Double exhaust system to ensure fume extraction effect, matching front and rear chuck, step by step, level processing.

    The rear chuck equipped with a waste collection system.

  • B  Follow-up support component system. During the cutting process, it can be ensured that the support frame can always follow the pipe to prevent pipe cutting errors caused by pipe deformation. The front end is equipped with front, rear, left and right dual follow-up modules to ensure cutting accuracy, and automatic tilting and blanking settings to prevent pipe scratches.

  • The machine is equipped with Bochu special chuck, which has better dynamic performance, speed can reach 80r/min, acceleration can reach 1.5G

[LX83THA] New design cnc laser pipe cutting machine LX83THA Automatic loading and unloading laser tube cutter for sale


The Segmented Rectangle Laser Tube Welded Bed

  • Good rigidity, high precision, no deformation during the life cycle;

  • Welded aluminum collet board, formed through high precision process. Good weight and good dynamic performance

[LX83THA] New design cnc laser pipe cutting machine LX83THA Automatic loading and unloading laser tube cutter for sale


Pneumatic Chuck Clamping Design

  • It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)

[LX83THA] New design cnc laser pipe cutting machine LX83THA Automatic loading and unloading laser tube cutter for sale

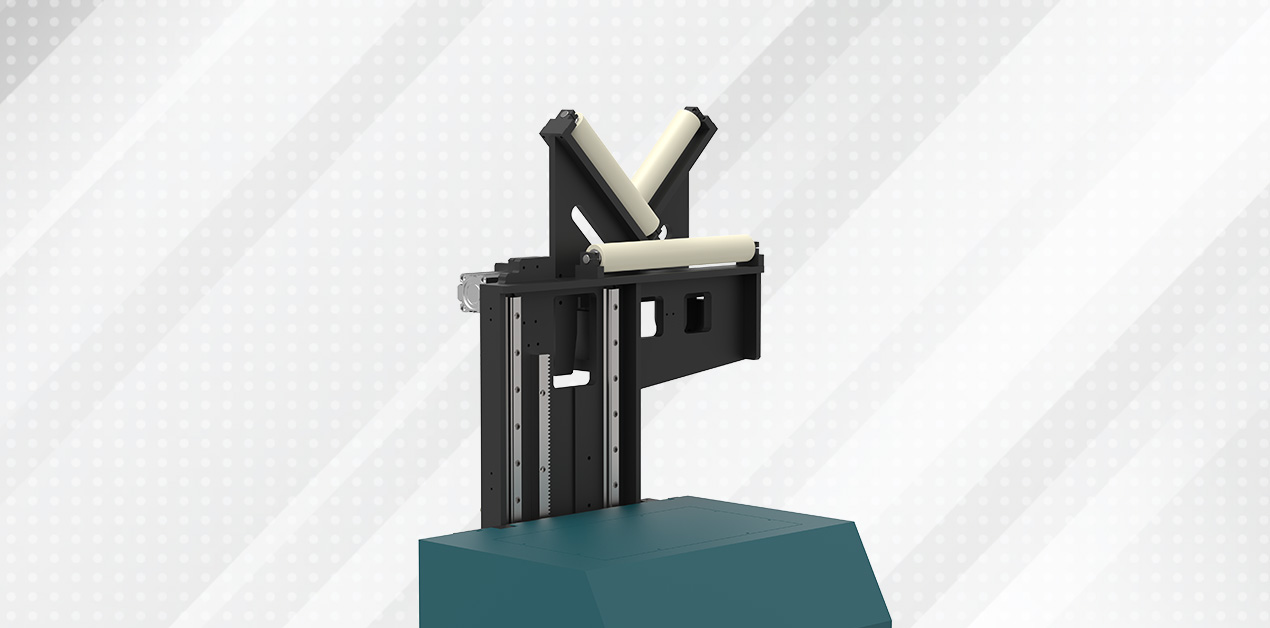

Fractional Automatic Support Installation

  • It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting

  • [LX83THA] New design cnc laser pipe cutting machine LX83THA Automatic loading and unloading laser tube cutter for sale


Professional Clamp Design

Automatic pneumatic chuck, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering pneumatic chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability

[LX83THA] New design cnc laser pipe cutting machine LX83THA Automatic loading and unloading laser tube cutter for sale


Intelligent Autofocus

lt will automatically in cutting process adjust the focus which can realize the best cutting effect of different thickness of metal

[LX83THA] New design cnc laser pipe cutting machine LX83THA Automatic loading and unloading laser tube cutter for sale



  • Intelligent Alarm System

  • It can detect anomalies in advance, reduce hidden dangers, and double the effect of abnormal detection of equipment

  •

  • Stroke intelligent protection

  • Detect whole process of cutting head working, quickly feedback the risk and stop it. Double protection with fixed limit to improve equipment and personal safety and reduce risk

[LX83THA] New design cnc laser pipe cutting machine LX83THA Automatic loading and unloading laser tube cutter for sale


The Absolute Value Servo Motor

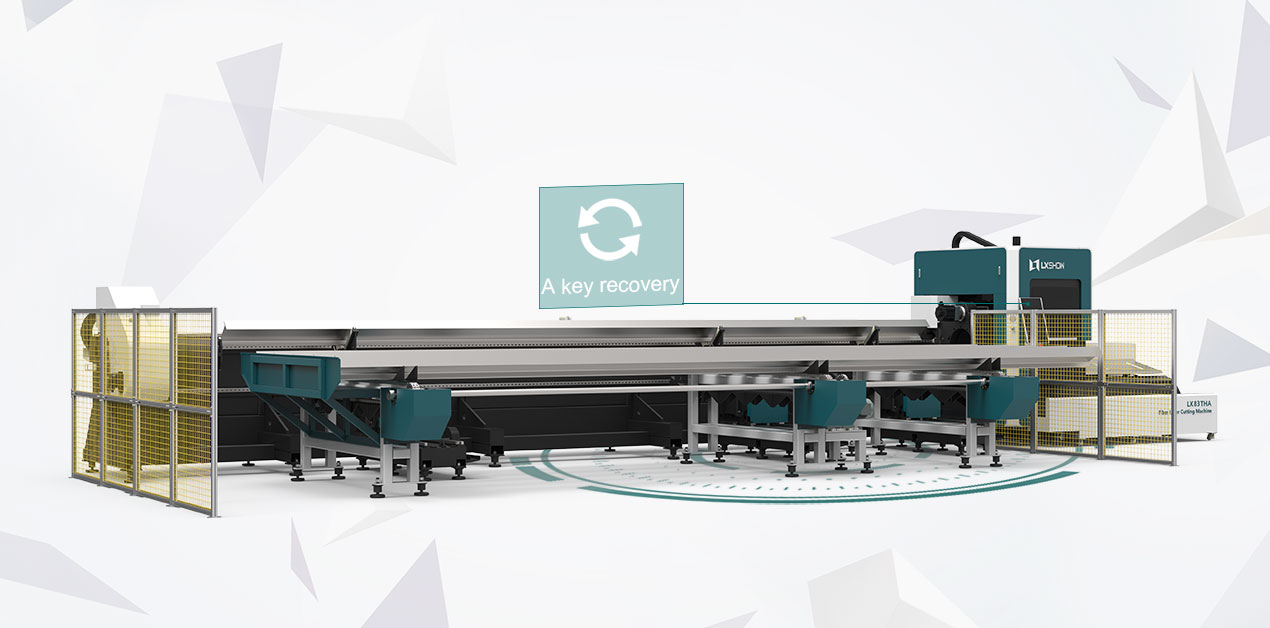

System is equipped with servo motor, boot to homework, do not need to return to zero operation, power outages, a key recovery cutting operation
